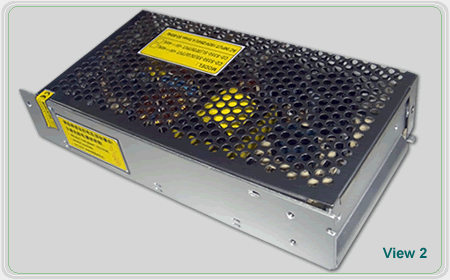

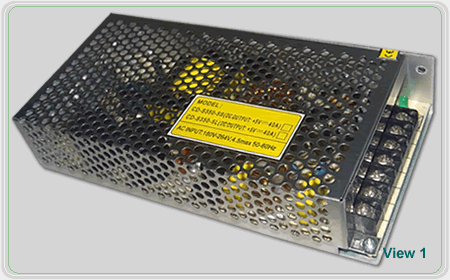

Industrial Power Supply 5V30 12V12A
Parameter
	DC Voltage 5V 12V Rated Current 30A 12A Curent Range 0～50A 0~25A Rated Power 150W 150W Ripple And Noise (Maximum) *Remarks 2 50mV 120mv Efficiency (TYP) 82.3% 86% Voltage Adjustment Range 4.5V～5.6V 11.40V～12.60V Voltage Accuracy *Remarks 3 ±2.0% Adjustment Of The Rate Of Linear ±0.5% Load Regulation ±1.0% ±1.0% Boot Up, Rising, Hold Time 200ms,100ms,20ms AC Voltage Range 90～132VAC/180～264VAC(To choose by switch) Frequency Range 47～63HZ AC current 5A / 115VAC3A / 230VAC Surge Current (MAX) 50A/115VAC50A/230VAC Leakage Current ＜3.5MA/240VAC Over Load Rated Power Of 105%～135% Over Load Protection Activate Protected Type: Constant Current Limiting, Load Abnormal Conditions Can Be Removed Automatically After The Restoration Of Over Voltage 5.75V～6.75V Protected Type: Hiccup Mode, Can Be Restored After Removing The Abnormal Voltage Over Temperature RTH2≥110℃ Protected Mode: Start The Cooling Fan For Heat Dissipation To The Power Supply To Ensure Power Supply In Harsh Environment To Work Operational Temperature -10℃～+50℃ Operational Humidity 20～90% RH,No Condensation Storage Temperature -20℃～+85℃ Storage Humidity 10～90%RH Temperature Coefficient ±0.03%℃(0～+50℃) Vibration Resistance By X, Y, Z Axis, 10 ~ 500HZ, 2G10 Minute / Cycle, A Ttal Of 60 Minutes Certification UL1950,CE&CCC Pressure I/P-O/P:1.5KVACI/P-FG:1.5KVACO/P-FG:0.5KVAC Insulation Resistance I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC70%RH Electromagnetic Interference FCC Part 15.J Conducvction.ClassA MTBF 271.9K hrs.min. MIL-HDBK-217F(25℃) Size 200*110*50(L*W*H) Packaging 0.83KG 12 Per Box
Product Reliability
	[Model]:NES-150 [Frequency Range]:47～63HZ [AC Current]:5A / 115VAC 3A / 230VAC [Operational Temperature]:-10℃～+50℃ [Operational Humidity]:20～90% RH ,No Condensation [Storage Temperature]:-20℃～+85℃ [Storage Humidity]:10～90% RH [Temperature Coefficient]:±0.03%℃(0～+50℃)          [Protection]:Over/Under Load, Over Voltage, Short Circuit        [Product Features]:● 82% Of Ultra-High Efficiency, Low Heat           　　　　　　● Work To Use High-Temperature 55 ℃           　　　　　　● AAll New Products, The Quality Of A Painting           　　　　　　● AC Input Range Can Be Switched Switch Choice           　　　　　　● Long Life With Low Operating Temperature           　　　　　　● 100% Full Load Burning Test           　　　　　　● Small Size, Light Weight [Safety Certification]:3C,CE,UL
More
5V50 12V25A 5V60A 12V26A 5V30A 12V12A 5V30A 12V12A
