| Buy Quality dc adapter directly from China power adapter Suppliers,16V 3.8A Switching Power Supply AC DC Adapter 16V3.8A With High Efficiency,16V3.8A AC-DC Adapter has good security performance |
|

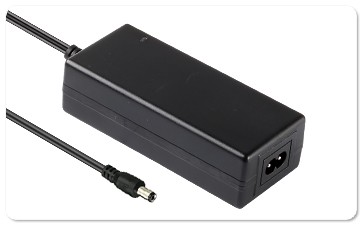

 16V3.8A AC-DC Adapter Dc Power Jack: （On request） |
|
|
|
16V3.8A AC-DC Adapter Product Description : |
|
|
[Model]:ABT038160
[Brand]:ABT (Accept OEM ODM Order)
[power]:60W
[Input Voltage]:AC 100-240V/47-63 Hz
[Output Voltage]:DC 16V 3.8A
[Color]:White / Black（On request）
[Safety Certification]:KC,RCM,CB,UL,TUV,CCC,BSMI,SAA,PSE,CE,FCC,C-TICK,NOM,cTUVus,GS,etc.
Meet all related safety standard,Ultra low no-load/standby power consumption,
meet CEC V,CEC,MEPS,ERP,CoC V5,DoE Ⅵ,ROHS,green power requirements.
with IEC62368,IEC61558,IEC60335,IEC60950,UL1310,UL62368 Standard.
|
|
16V3.8A AC-DC Adapter Product Parameters : |
|
[16V3800MA AC-DC Adapter Size]: 119*52*34mm
[16V3.8A AC-DC Adapter Protection]:Over-voltage Protection, Over-current Protection,
Short Circuit Protection.
[16V3.8A AC-DC Adapter Reliability]:Temperature Rise (Burn-In): 85-95% Load For Each,
40 ± 5 ℃, 4 Hours.Leakage Current: 0.25mA MAX 254VAC. Insulation
Voltage (Between The Primary And Secondary): 3000VAC, 60S,10mA MAX .
MTBF: According to MIL-HDBK-217F Standard, Full Load,
25 ℃, More Than 50000 Hours.
|
|
16V3800MA AC-DC Adapter Product Features : |
|
Built-In Anti-electromagnetic Interference Filter.
Super-Power Supply, Fixed Frequency Control Circuit To Ensure Stability
ToProvide Continuous Dynamic Long-Term Output Voltage For a Wide Range
Of Shift Electronic Equipment.
Well Designed, Lightweight Beautiful Appearance,
And Competitive Price.
Low Empty Load And Standby
Energy Loss, In Line With The CEC Standard.
Ultra-safe Design,
In Line With Safety Certification Of Different Countries.
16V3800MA Adapter Highly Efficient Circuit Design, Stable Performance,
Low Temperature.
Humanity Directed Power Working Status.
|
|
16V3.8A AC-DC Adapter Application: |
|
LCD Monitor 16V3800MA AC-DC Power Adapter
LED Lights 16V3800MA AC-DC Adapter Power Supply
HDD Enclosure 16V3.8A AC-DC Adapter Power Supply
ADSL AC-DC Adapter Power Supply
DPF AC-DC Adapter Power Supply
Refrigerators AC-DC Adapter Power Supply
Portable DVD AC-DC Adapter Power Supply
Stereo AC-DC Adapter Power Supply
Radio AC-DC Adapter Power Supply
Networking Security System Products Etc AC-DC Adapter Power Supply
Mini PC AC-DC Adapter Power Supply,PDA AC-DC Adapter Power Supply
LCD Television 16V3.8A AC-DC Adapter Power Supply
|
|
